Modifying and extending NEP models

A trained NEP model can serve as the starting point for further development rather than as a final product. Common workflows include:

• Increasing capacity: expand the number of neurons or add higher-body descriptor terms when the initial architecture turns out to be too small.

• Adding a charge output: promote a plain potential model to a charge-aware qNEP model by attaching a charge output head, then continue training with charge targets.

• Species manipulation: prune a multi-element model down to a subset of elements, or extend an existing model with a new species without discarding the learned potential surface.

• Reducing capacity: remove neurons or descriptor terms that contribute little to accuracy, for faster inference or as a starting point for fine-tuning on a narrower dataset.

calorine provides six Model methods for these use cases:

Method	What it does	Retraining required?
augment()	Expand neurons, descriptors, or add a charge head	Yes
prune()	Reduce neurons, remove descriptor terms, or drop the charge head	Yes
remove_species()	Remove one or more species	No (optional)
keep_species()	Retain a subset of species, dropping all others	No (optional)
add_species()	Add one or more species	Yes
reorder()	Permute the species order	No

All methods return a new Model instance. The source model is never modified in place. None of them assigns an SNES restart sigma value. Parameters that already existed keep their exact prior mu/sigma. Parameters newly created by augment()/add_species() get an initialized mu but an unset (NaN) sigma. A seventh method, set_restart_sigma(), is the only place sigma values are ever assigned. Use it to fill in new parameters’ sigma, to explicitly re-open sigma for existing parameters before continuing training, or even to bootstrap a restart from scratch for a plain nep.txt model.

The data required for running this tutorial notebook can be obtained from Zenodo.

import os
import urllib.request

os.makedirs('nep_model_modification', exist_ok=True)
base_url = 'https://zenodo.org/records/21198312/files'
for fname in ['nep-PbTe.txt', 'nep-PbTe.restart', 'nep-PbTe.in']:
    fpath = f'nep_model_modification/{fname}'
    if not os.path.exists(fpath):
        urllib.request.urlretrieve(f'{base_url}/{fname}', fpath)
        print(f'Downloaded {fname}')
    else:
        print(f'{fname} already present')
os.chdir('nep_model_modification')

Downloaded nep-PbTe.txt
Downloaded nep-PbTe.restart
Downloaded nep-PbTe.in

Loading a model

The modification methods require the SNES restart file to be loaded alongside the model. The restart file stores a mean mu and a standard deviation sigma for every parameter; these are the current estimate of the SNES optimizer of the optimal value and exploration width, respectively.

from calorine.nep import read_model

model = read_model('nep-PbTe.txt', restart_file='nep-PbTe.restart')
display(model)

Field	Value
version	4
model_type	potential
types	('Te', 'Pb')
radial_cutoff	8.0
angular_cutoff	4.0
n_basis_radial	8
n_basis_angular	8
n_max_radial	4
n_max_angular	4
l_max_3b	4
l_max_4b	2
l_max_5b	0
has_q_112	0
has_q_123	0
has_q_233	0
has_q_134	0
n_descriptor_radial	5
n_descriptor_angular	25
n_neuron	30
n_parameters	2311
n_descriptor_parameters	360
n_ann_parameters	1921
sqrt_epsilon_infinity	None
charge_mode	0
restart_parameters	available
zbl	None
zbl_typewise_cutoff_factor	None
max_neighbors_radial	74
max_neighbors_angular	10
Dimension of ann_parameters	(2, 3)
Dimension of q_scaler	30
Dimension of radial_descriptor_weights	(5, 9)
Dimension of angular_descriptor_weights	(5, 9)

Expanding a model with augment()

augment() applies one or more structural changes atomically and returns a new model. All changes can be combined in a single call.

Existing vs. new parameters

augment() never assigns a sigma value itself. Parameters that already existed (mu and sigma) are carried over exactly as they were. New parameters get mu = 0 and their sigma is left unset (NaN). Call set_restart_sigma() afterwards to initialize the new entries. By default it only fills in unset (NaN) sigma, leaving the rest of the restart untouched. write_restart() refuses to write while any sigma is still unset.

Adding neurons

larger = model.augment(n_neuron=40)

print(f'n_neuron     : {model.n_neuron} -> {larger.n_neuron}')
print(f'n_parameters : {model.n_parameters} -> {larger.n_parameters}')

# The source model is unmodified
assert model.n_neuron == 30

n_neuron     : 30 -> 40
n_parameters : 2311 -> 2951

Adding descriptor terms

The 4-body and 5-body descriptor terms are controlled by l_max_4b, l_max_5b, and the has_q_* flags. Enabling a new body-order term adds n_max_angular + 1 new descriptor dimensions and the corresponding columns in the input-layer weight matrix w0.

print(f'Before: l_max_5b = {model.l_max_5b}, '
      f'n_descriptor_angular = {model.n_descriptor_angular}')

with_5b = model.augment(l_max_5b=1)

print(f'After:  l_max_5b = {with_5b.l_max_5b}, '
      f'n_descriptor_angular = {with_5b.n_descriptor_angular}')
print(f'Δ = {with_5b.n_descriptor_angular - model.n_descriptor_angular} '
      f'= n_max_angular + 1 = {model.n_max_angular + 1}')

Before: l_max_5b = 0, n_descriptor_angular = 25
After:  l_max_5b = 1, n_descriptor_angular = 30
Δ = 5 = n_max_angular + 1 = 5

Adding a charge output head

Setting charge_head=True promotes a plain NEP model (potential) to a charge-aware qNEP model (potential_with_charges). A second output node is added per species (the charge head) and sqrt_epsilon_infinity is initialized to one (ε∞ = 1, the vacuum value). The charge weights w1_charge start at zero, so the charge contribution is silent at the start of training.

Pass sqrt_epsilon_infinity to start from a different value. It has to be positive: ε∞ is the square of it, the high-frequency dielectric constant. For the same reason it is the one parameter that initialize_parameters leaves alone, so the value chosen here is the one training starts from.

charge_model = model.augment(charge_head=True)

print(f'model_type   : {model.model_type!r} -> {charge_model.model_type!r}')
print(f'n_parameters : {model.n_parameters} -> {charge_model.n_parameters}')

model_type   : 'potential' -> 'potential_with_charges'
n_parameters : 2311 -> 2372

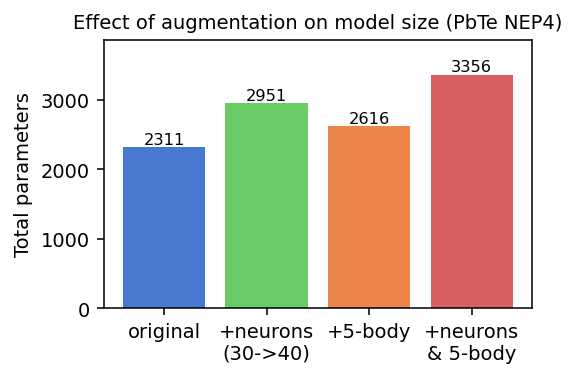

Combining augmentations

All changes can be requested in a single call. The new w0 matrix grows in both dimensions simultaneously, so combining neuron expansion with descriptor expansion is equivalent to doing them atomically.

from matplotlib import pyplot as plt

aug = model.augment(n_neuron=40, l_max_5b=1)

labels = ['original', '+neurons\n(30->40)', '+5-body', '+neurons\n& 5-body']
counts = [model.n_parameters, larger.n_parameters,
          with_5b.n_parameters, aug.n_parameters]

fig, ax = plt.subplots(figsize=(4, 2.8), dpi=140)
bars = ax.bar(labels, counts, color=['#4878d0', '#6acc65', '#ee854a', '#d65f5f'])
ax.set_ylabel('Total parameters')
ax.set_title('Effect of augmentation on model size (PbTe NEP4)', size='medium')
for bar, c in zip(bars, counts):
    ax.text(bar.get_x() + bar.get_width() / 2, c + 5, str(c),
            ha='center', va='bottom', fontsize='small')
ax.set_ylim(0, max(counts) * 1.15)
fig.tight_layout()

Writing the augmented model to disk

aug has unset sigma for the parameters augment() just created (the extra neurons and the 5-body descriptor block). Call set_restart_sigma() first to fill those in. By default this only touches the unset entries, leaving the rest of the restart untouched. The augmented model is then written with the same write() / write_restart() methods used for any model. The resulting nep.txt and nep.restart files can be placed directly in a GPUMD working directory to resume training.

aug = aug.set_restart_sigma()

aug.write('nep.txt')
aug.write_restart('nep.restart')

Before starting a new training run with the augmented model, nep.in must be updated to reflect the new architecture. GPUMD reads nep.in (not nep.txt) to determine the model size and compute how many values to read from nep.restart. Using a stale nep.in causes a stride mismatch: GPUMD reads the restart file with the old parameter count and all values beyond the first mismatch are garbage, producing training-from-scratch-level initial loss even when sigma is zero.

training_parameters returns the architecture fields in the format accepted by write_nepfile():

print(aug.training_parameters)

{'version': 4, 'type': [2, 'Te', 'Pb'], 'cutoff': [8.0, 4.0], 'n_max': [4, 4], 'basis_size': [8, 8], 'l_max': [4, 2, 1], 'neuron': 40}

To update an existing nep.in with the new architecture while keeping the training-specific settings, merge training_parameters into the existing parameter dict and write the result.

from calorine.nep import read_nepfile, write_nepfile

params = read_nepfile('nep-PbTe.in')  # read the old nep.in file
params.update(aug.training_parameters)
write_nepfile(params, '.')
print(open('nep.in').read())

version  4
type  2 Te Pb
cutoff  8.0 4.0
n_max  4 4
basis_size  8 8
l_max  4 2 1
neuron  40
generation  100000
batch  1000
lambda_e  1.0
lambda_f  1.0
lambda_v  0.1

Removing species with remove_species()

remove_species() prunes all parameters associated with the listed elements, i.e., the ANN sub-networks, descriptor weight pairs, and (if the restart is loaded) their SNES statistics. A common use case is extracting a single-element model from a multi-element potential.

te_only = model.remove_species(['Pb'])

print(f'Original types : {model.types}')
print(f'Retained types : {te_only.types}')
print()
print(f'n_parameters   : {model.n_parameters} -> {te_only.n_parameters}')

# Source model is unchanged
assert model.types == ('Te', 'Pb')

Original types : ('Te', 'Pb')
Retained types : ('Te',)

n_parameters   : 2311 -> 1081

remove_species() never assigns a sigma value. Parameters that already existed keep their exact prior mu/sigma. Call set_restart_sigma(target='all') explicitly afterwards if you want to re-open the SNES search width before continuing training, e.g. te_only.set_restart_sigma(target='all').

Retaining species with keep_species()

When isolating a small subset from a large foundation model, listing every species to drop via remove_species() is impractical. keep_species() accepts the elements to retain and derives the removal list automatically.

# Isolate Te from the binary model — equivalent to remove_species(['Pb'])
te_model = model.keep_species(['Te'])

print(f'Original types : {model.types}')
print(f'Retained types : {te_model.types}')
print(f'n_parameters   : {model.n_parameters} -> {te_model.n_parameters}')

Original types : ('Te', 'Pb')
Retained types : ('Te',)
n_parameters   : 2311 -> 1081

Reordering species with reorder()

GPUMD requires a NEP model and a TNEP model (dipole or polarizability) to use the same species order when referenced jointly, e.g. via two potential lines in run.in together with dump_dipole or dump_polarizability, as demonstrated in the IR spectra tutorial and the Raman spectra tutorial. Models trained independently can end up with different orderings of the same elements. reorder() permutes the species order without touching any parameter values, since the ANN sub-networks and descriptor weights are keyed by species name rather than position, so no retraining is required.

swapped_order = model.reorder(['Pb', 'Te'])

print(f'Original types : {model.types}')
print(f'Reordered types: {swapped_order.types}')
print(f'n_parameters   : {model.n_parameters} -> {swapped_order.n_parameters}')

# Source model is unchanged, and no parameters are added, removed, or perturbed
assert model.types == ('Te', 'Pb')
assert swapped_order.n_parameters == model.n_parameters

Original types : ('Te', 'Pb')
Reordered types: ('Pb', 'Te')
n_parameters   : 2311 -> 2311

For models with typewise cutoffs (radial_cutoff/angular_cutoff given as per-species lists), reorder() also permutes the cutoff lists so each value stays matched to its species. reorder() raises ValueError if the requested order is not an exact permutation of the model’s current species.

Adding species with add_species()

add_species() extends the model with:

• A new per-species ANN sub-network (for each added element)

• All new (species_1, species_2) descriptor weight pairs involving the new elements

All new parameters are initialized with mu drawn uniformly from [-1, 1] (matching GPUMD’s fresh-model initialization). Their sigma is left unset (NaN) until you call set_restart_sigma(). The existing species retain their trained mu/sigma untouched.

Because the new parameters start from a fresh random initialization, the model must be trained further before the new element is meaningful.

extended = model.add_species(['Bi'])

print(f'Types         : {model.types} -> {extended.types}')
print(f'n_parameters  : {model.n_parameters} -> {extended.n_parameters}')
print()
# New sub-network: mu drawn uniformly from [-1, 1]
bi_w0 = extended.ann_parameters['Bi']['w0']
print(f'Bi w0 shape   : {bi_w0.shape}')
print(f'Bi w0 range   : [{bi_w0.min():.3f}, {bi_w0.max():.3f}]')

# All new descriptor pairs are present
new_pairs = [(s1, s2) for s1 in extended.types for s2 in extended.types
             if 'Bi' in (s1, s2)]
print(f'New descriptor pairs: {new_pairs}')

Types         : ('Te', 'Pb') -> ('Te', 'Pb', 'Bi')
n_parameters  : 2311 -> 3721

Bi w0 shape   : (30, 30)
Bi w0 range   : [-0.998, 0.999]
New descriptor pairs: [('Te', 'Bi'), ('Pb', 'Bi'), ('Bi', 'Te'), ('Bi', 'Pb'), ('Bi', 'Bi')]

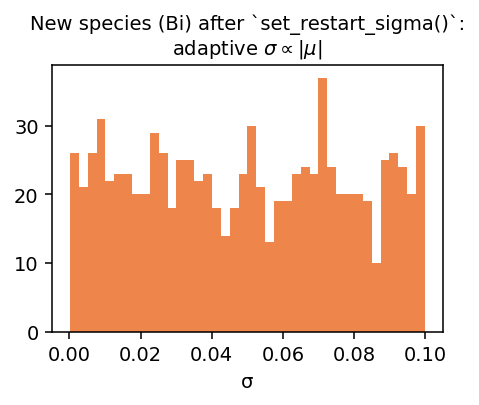

import numpy as np

print('Bi sigma all unset (NaN) right after add_species():',
      bool(np.isnan(extended.restart_parameters['ann_sigma']['Bi']['w0']).all()))

extended_filled = extended.set_restart_sigma()  # default: strategy='scale_mu', target='unset'

te_sigma_before = model.restart_parameters['ann_sigma']['Te']['w0']
te_sigma_after = extended_filled.restart_parameters['ann_sigma']['Te']['w0']
print('Existing species (Te) sigma untouched by add_species() + set_restart_sigma():',
      bool(np.array_equal(te_sigma_before, te_sigma_after)))

bi_sigma = extended_filled.restart_parameters['ann_sigma']['Bi']['w0']

fig, ax = plt.subplots(figsize=(3.4, 3), dpi=140)
ax.hist(bi_sigma.flatten(), bins=40, color='#ee854a')
ax.set_title('New species (Bi) after `set_restart_sigma()`:\n' + r'adaptive $\sigma\propto|\mu|$',
              size='medium')
ax.set_xlabel('σ')
fig.tight_layout()

Bi sigma all unset (NaN) right after add_species(): True
Existing species (Te) sigma untouched by add_species() + set_restart_sigma(): True

Pruning with prune()

prune() is the complement to augment(): it returns a new model with a smaller architecture. Just like remove_species(), it never assigns a sigma value: parameters that remain keep their exact prior mu/sigma. Call set_restart_sigma(target='all') explicitly afterwards if you want the optimizer to be able to adapt more freely from the reduced starting point.

Reducing neurons

When n_neuron is reduced, neurons are ranked by their importance score averaged over species:

\[\text{importance}[n] = \frac{1}{|S|} \sum_s \lVert w^{(0)}_{s}[n, :] \rVert_2 \times |w^{(1)}_{s}[n]|\]

For charge models, \(|w^{(1)}_{s}[n]|\) is replaced by \(|w^{(1)}_{s}[n]| + |w^{(1,\mathrm{charge})}_{s}[n]|\). The top-scoring neurons are kept. The rest are discarded.

pruned_neurons = model.prune(n_neuron=20)

print(f'Original : n_neuron={model.n_neuron}, n_parameters={model.n_parameters}')
print(f'Pruned   : n_neuron={pruned_neurons.n_neuron}, n_parameters={pruned_neurons.n_parameters}')

# Source model is unmodified
assert model.n_neuron == 30

Original : n_neuron=30, n_parameters=2311
Pruned   : n_neuron=20, n_parameters=1671

Removing descriptor terms

Setting l_max_4b=0 (or has_q_112=False, etc.) drops the corresponding descriptor columns entirely, reducing n_descriptor_angular and n_parameters.

Note: reducing l_max_4b to a non-zero value (e.g. 3 → 2) only changes the header: the descriptor dimensions are unchanged because the same number of (n_max_angular + 1) columns is stored for any non-zero l_max_4b.

pruned_desc = model.prune(l_max_4b=0)

n_removed = model.n_descriptor_angular - pruned_desc.n_descriptor_angular
print(f'Original : l_max_4b={model.l_max_4b}, n_descriptor_angular={model.n_descriptor_angular}')
print(f'Pruned   : l_max_4b={pruned_desc.l_max_4b}, n_descriptor_angular={pruned_desc.n_descriptor_angular}')
print(f'Columns removed: {n_removed} (= n_max_angular + 1 = {model.n_max_angular + 1})')

Original : l_max_4b=2, n_descriptor_angular=25
Pruned   : l_max_4b=0, n_descriptor_angular=20
Columns removed: 5 (= n_max_angular + 1 = 5)

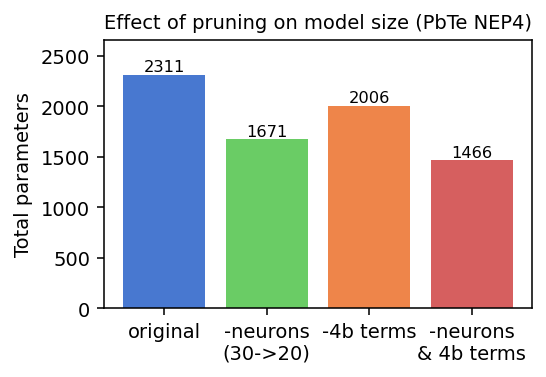

Combining reductions

Both axes can be combined in a single call, as with augment().

pruned = model.prune(n_neuron=20, l_max_4b=0)

labels = ['original', '-neurons\n(30->20)', '-4b terms', '-neurons\n& 4b terms']
counts = [model.n_parameters, pruned_neurons.n_parameters,
          pruned_desc.n_parameters, pruned.n_parameters]

fig, ax = plt.subplots(figsize=(4, 2.8), dpi=140)

bars = ax.bar(labels, counts, color=['#4878d0', '#6acc65', '#ee854a', '#d65f5f'])
ax.set_ylabel('Total parameters')
ax.set_title('Effect of pruning on model size (PbTe NEP4)', size='medium')
for bar, c in zip(bars, counts):
    ax.text(bar.get_x() + bar.get_width() / 2, c + 5, str(c),
            ha='center', va='bottom', fontsize='small')
ax.set_ylim(0, max(counts) * 1.15)

fig.tight_layout()

Re-opening sigma for parameters that remain

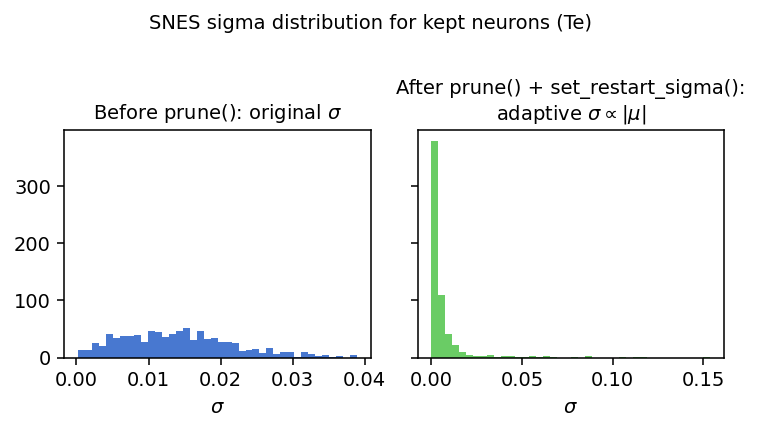

By default, the neurons kept by prune() retain their exact prior mu/sigma. Nothing is re-opened automatically. Call set_restart_sigma(target='all') explicitly to re-open the SNES search width for the parameters that remain, sigma = max(sigma_floor, sigma_factor × |μ|). Parameters with large trained values get more room to adapt, while near-zero parameters remain dormant.

sigma_factor_val = 0.1   # default
sigma_floor_val = 1e-6   # default

s = 'Te'
mu_w0 = model.restart_parameters['ann_mu'][s]['w0']
sigma_w0_before = model.restart_parameters['ann_sigma'][s]['w0']

pruned_reopened = pruned_neurons.set_restart_sigma(target='all')
sigma_w0_after = pruned_reopened.restart_parameters['ann_sigma'][s]['w0']

fig, axes = plt.subplots(1, 2, figsize=(5.4, 3), dpi=140, sharey=True)

axes[0].hist(sigma_w0_before.flatten(), bins=40, color='#4878d0')
axes[0].set_title(fr'Before prune(): original $\sigma$', size='medium')
axes[0].set_xlabel(r'$\sigma$')

axes[1].hist(sigma_w0_after.flatten(), bins=40, color='#6acc65')
axes[1].set_title(fr'After prune() + set_restart_sigma():' + '\n' + r'adaptive $\sigma\propto|\mu|$',
                   size='medium')
axes[1].set_xlabel(r'$\sigma$')

fig.suptitle(f'SNES sigma distribution for kept neurons ({s})', y=1.01, size='medium')
fig.tight_layout()

Composing operations

Each method returns a new Model, so operations can be chained directly.

# Swap Pb for Bi: prune Pb, then add Bi
swapped = model.remove_species(['Pb']).add_species(['Bi'])
print(f'Original : {model.types}')
print(f'Swapped  : {swapped.types}')

Original : ('Te', 'Pb')
Swapped  : ('Te', 'Bi')

# Expand the architecture and add a new element in one pipeline
final = model.augment(n_neuron=40).add_species(['Bi'])
print(f'Types        : {final.types}')
print(f'n_neuron     : {final.n_neuron}')
print(f'n_parameters : {final.n_parameters}')

Types        : ('Te', 'Pb', 'Bi')
n_neuron     : 40
n_parameters : 4681

# Trim to essentials, then add a new element
compact = model.prune(n_neuron=20, l_max_4b=0).add_species(['Bi'])
print(f'Types        : {compact.types}')
print(f'n_neuron     : {compact.n_neuron}')
print(f'n_parameters : {compact.n_parameters}')

Types        : ('Te', 'Pb', 'Bi')
n_neuron     : 20
n_parameters : 2456
